UHF (Ultra High
Frequency) Tags, Labels and Cards operate at a high frequency. These types
of tags are considered “Passive” – no onboard power source. The supply chain
related mandates from retailers such as Wal-Mart, Sam’s Club and Metro
require that UHF Passive RFID tags be used. These tags must comply with the
international recognized standard set by EPCglobal (UHF Gen 2). UHF
frequencies typically offer better range (20-30 ft) and can transfer data
faster than LF and HF tags, but they use more power and are less likely to
pass through materials.
If you don't see the RFID chip
you need on these charts, contact us with details about your RFID needs.
Contact form.
 |
RFID cards PRICING
For quotes, please
with quantity, type of RFID and other specifications. We'll email
you back a quote within 24 hours. |
|
Ultra
High Frequency 868-915MHz |
|
RFID
Inlay |
IC Manufacturer |
Frequency Band |
RF Protocol |
Memory |
AD-826 |
Avery Dennison
IC from Impinj Monza |
Wide band Global frequency
860-960MHz |
EPC Class1 Gen2
ISO 18000-6C |
96bit EPC Memory+ TID |
| AD-824 |
Avery Dennison
IC from NXP |
Wide band Global frequency
860-960MHz |
EPC Class1 Gen2
ISO 18000-6C |
240bit EPC Memory+ TID
512bit EPC Memory+ TID |
| AD-820 |
Avery Dennison
IC from Impinj Monza |
FCC (902-928 MHz) |
EPC Class1 Gen2
ISO 18000-6C |
96bit EPC Memory+ TID |
| AD-821 |
Avery Dennison
IC from NXP |
ETSI (865-868 MHz) |
EPC Class1 Gen2
ISO 18000-6C |
96bit EPC Memory+ TID |
|
|
|
 |
Radio-frequency
identification (RFID) is the use of an RFID tag applied to or
incorporated into a product, like a card for the purpose of
identification and tracking using radio waves. Some tags can be
read from feet away and beyond the line of sight of the reader.
Most RFID tags contain at least two parts. One is an integrated
circuit for storing and processing information, and the second
is an antenna for receiving and transmitting the signal.
RFID/proximity smart card provide a convenient and secure way
for individual members, or group of members, to access member
restricted facilities/areas without the need for manual
check-in. Facilities/areas such can be parking lots, clubs,
spas, pools, tennis courts, ski chair lifts etc. |
|
|

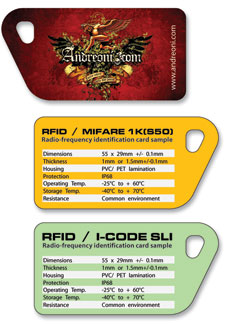

RFID cards can be customized
with many of the same options and features
available on our standard plastic cards. They
include the following:
|
Full color printing
Magnetic stripes
Signature strips
Barcoding
Numbering
Scratch off panels
* For diecuts/special
shapes and sizes, some restriction may
apply. Please email us the dyeline before
you create the artwork for your custom
shape. |
|
|
|
